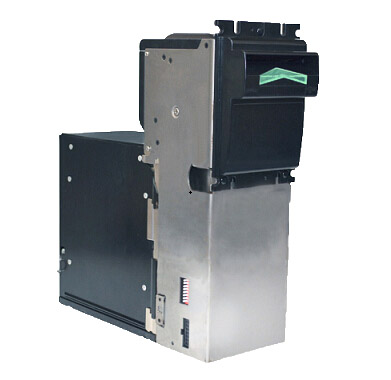

The MT500 backload banknotes acceptor is designed to provide maximum currency.Validation with escrow, stacker and removable security cash-box
•Accurately identify of counterfeit banknotes in the market.
•Query of total money number ,total value and detailed list in the bill box.
•Limitless way of bill insertion, four ways, any positions, easy to use. Automatically centering of bills, to decrease bills jam probability.
•Multispectral and high sensitive magnetic sensor is effective to detect the security features of bills.
•Automatically detect all sensors when power on to ensure machine running in a valid state.
•Mechanical theft proof design, to make sure product safe and reliable.
•Easily disassemble bill box with secure lock
•Communication type with control center comply with CCNET standard protocol
•Easy to maintenance, remember of user Settings, no need to repeatedly set up after power off.
•Online IAP software update.
● Kiosk Terminals, Payment Systems
● Vending Machines, Gaming Machines
● Lottery, Retail, Transportation, Amusement
● Ticket Vending Machines, Parking Systems
● Dispensing and revaluating pre-paid cards
● Stationary and Mobile Ticketing Machines
● Add Value Kiosk, Automatic Fare Collections
- Functional features:
- Recognize bank note: customized
- Insertion type: 4-way for two sides to insert bank note
- Banknotes width : 60 - 78mm length : ≤ 157mm
- Accept speed: <3 seconds
- Recognition rate: 98%
- MTBF: 1.5 million cycles
- Communication mode: customized
- Interface: RS232
- Protocol standard: CCNET (MDB optional)
- Baud rate: 9600bps
- Software upgrades: IAP online download
- Electrical characteristics:
- Working temperature: -15 - 60 C
- Storage temperature: - 40 - 75 C
- Storage humidity: ≤90% RH (no condensation)
- Working voltage: 12V DC, ±15%
- Working current: <2A
- Standby current: <0.2A
