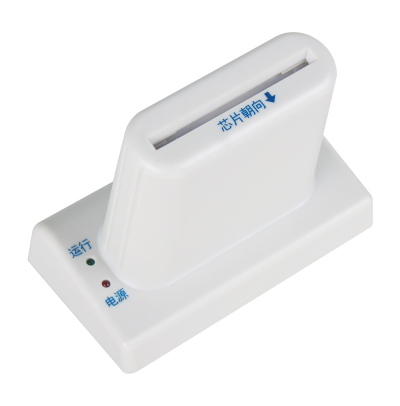

MINGTE’s standalone card reader MT318-219 can read & write ISO7816 smart cards and ISO14443 Type A & B contactless cards. It supports manual card insertion with automatic card ejection function after operation. It excels in various fields, including Kiosk Terminals, Fuel Dispensers, CNG Dispensers, Parking Systems, Ticketing Machines,Vending Machines, Electric Vehicle Charging Points and ID Terminals etc.
●Elegant, high reliability and durability
●Standalone design, easy for card dispensing, recharging and query
●Support contactless IC card (ISO14443 TYPE A & B)
●Support S50 & S70 (Mifare) card (ISO14443 TYPE A & B)
●Support contact IC card (ISO7816)
●Support PSAM & ESAM card (ISO7816)
●Supplied with 1 SAM card slot
●Contactless IC card operation by insertion or near field
●With adapter for ESAM issuing
●Customized for compatibility with application flow of charging points from China Southern Power Grid or State Grid
●Kiosk Terminals, Fuel Dispensers, CNG Dispensers, Parking Systems, Ticketing Machines, Vending Machines, Electric Vehicle Charging Points, ID Terminals
|
CARD TYPE |
Contact IC Cards Contactless IC Cards |
|
|
IC CARD |
SIM/ PSAM/ESAM ISO/IEC 7816 T=0/1 |
R/W |
|
EMV |
Level 1 Compliant |
|
|
CONTACTLESS CARD(OPTIONAL) |
ISO14443 Type A & B & MIFARE |
R/W |
|
CARD READING DISTANCE |
≤5cm (Relevant to Working Environment) |
|
|
INTERFACE |
RS-232/TTL(uart)/USB2.0 |
|
|
BAUD RATE |
9600bps |
|
|
ANTENNA |
Internal Antenna |
|
|
ENCLOSURE MATERIAL |
ABS Plastic |
|
|
FREQUENCY |
13.56MHz |
|
|
SECONDYARY DEVELOPMENT LANGUAGE |
Support Multi Language and Offer Related Routines |
|
|
OPERATING SYSTEM |
Windows 98, Me, 2K, XP, 2003, Vista and Linux |
|
|
STORAGE DATA CAPACITY |
2K Bytes(Standard) |
|
|
STATUS DISPLAY |
LED Indication Light for Power & Communication Status |
|
|
POWER SUPPLY |
DC5V ± 5% |
|
|
CURRENT |
Static: ≤25mA(5V) Max: ≤120mA(5V) |
|
|
WORKING TEMPERATURE |
-40-+65°C |
|
|
WEIGHT |
Approx 145g |
|
