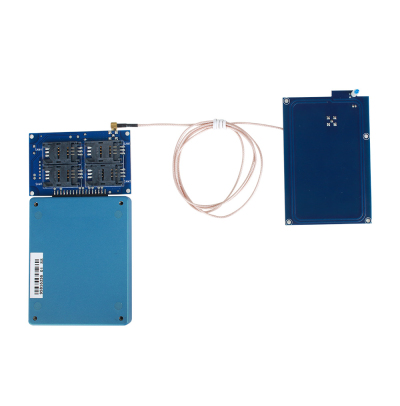

MT625V500 is a multifunctional card reader module designed for financial payment, which can read and write China second-generation identity card and financial IC card. It is compliant with GA467-2013, ISO14443, and ISO7816 standard. Supplied with 4 PSAM slots, it can also be configured with RFID card reading and writing functions according to customer’s requirements. With a specified identification secure access module (SAM), it can be used as an ID card reader.
●Easy to operate, high reliability and durability
●USB interface, PC/SC protocol
●Support contactless IC card (ISO14443 TYPE A & B)
●Support 4 PSAM cards (ISO7816)
●Support id ID card
● Comply with the requirements of the Ministry of Public Security's technical specification for the verification of the safety control module of resident identity card, GA467-2013, being used with SAM.
●With controllable buzzer and LED indicator
●Support online update
●Kiosk Terminals, Fuel Dispensers, CNG Dispensers, Parking Systems, Ticketing Machines, Vending Machines, Electric Vehicle Charging Points, ID Terminals
|
CARD TYPE |
ID Cards Contactless Cards Contact IC Cards |
|
|
SECOND-GENERATION ID CARD READER SECURITY MODULE |
Built-in Second-generation ID Card Reader Security Module, Certificated by Ministry of Public Security, Compliant with China Second-generation ID Card Reader Standard, Reading Range>5cm, Reading Speed≤1.5s |
|
|
CONTACTLESS CARD |
ISO14443 TYPE A & B & MIFARE(S50, S70) |
R/W |
|
IC CARD |
ISO 7816 |
R/W |
|
PSAM(4PCS) |
||
|
EMV |
||
|
CARD READING DISTANCE |
3cm(Related to Cards) |
|
|
FREQUENCY |
13.56MHz ± 7K |
|
|
COMMUNICATION SPEED |
106(Default), 212, 424, 848 Kbps |
|
|
MAX APDU LENGTH OF CPU CARD |
Read 270 bytes, write 260 bytes |
|
|
INDICATION LIGHT |
Controlled by Commands |
|
|
BUZZER |
Controlled by Commands |
|
|
INTERFACE |
USB |
|
|
POWER SUPPLY |
DC5V ± 5% |
|
|
CURRENT |
Working Current: ≤400mA Static Current: ≤160mA |
|
|
TEMPERATURE(NO CONDENSATION) |
Storage Temp: -40 - +75°C Working Temp: -40 - +65°C |
|
|
WEIGHT |
Approx 67g |
|
