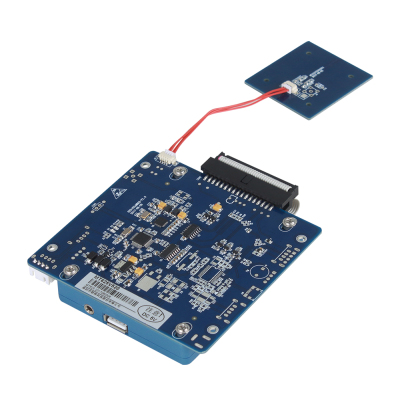

MT625V520 is a built-in China second generation ID card reader for automatic equipments. With RS232 interface and RF interface chip, it can read China second generation ID card through specified secure access module (SAM). It is stable and reliable, and adopts various kinds of harsh working environment. SDK is available for secondary development of system integration.
●Easy to operate, high reliability and durability
●RS232 interface, power form USB
● ISO14443 Type B compliant, fast identification.
●Support ID card
●Comply with the requirements of the Ministry of Public Security's technical specification for the verification of the safety control module of ID card, being used with SAM.
●With controllable buzzer and LED indicator (optional)
●Support online update
●Kiosk Terminals, Fuel Dispensers, CNG Dispensers, Parking Systems, Ticketing Machines, Vending Machines, Electric Vehicle Charging Points, ID Terminals
|
CARD TYPE |
ID Cards |
|
|
SECOND-GENERATION ID CARD READER SECURITY MODULE |
Built-in Second-generation ID Card Reader Security Module, Certificated by Ministry of Public Security, Compliant with China Second-generation ID Card Reader Standard, Reading Range>5cm, Reading Speed≤1.5s |
|
|
CONTACTLESS CARD |
ISO14443 TYPE B |
R/W |
|
CARD READING DISTANCE |
3cm(Related to Cards) |
|
|
FREQUENCY |
13.56MHz ± 7K |
|
|
COMMUNICATION SPEED |
106( l Default), 212, 424, 848 Kbps |
|
|
INDICATION LIGHT |
Controlled by Commands |
|
|
BUZZER |
Controlled by Commands |
|
|
INTERFACE |
RS232 |
|
|
POWER SUPPLY |
DC5V ± 5% |
|
|
CURRENT |
Working Current: ≤400mA Static Current: ≤160mA |
|
|
TEMPERATURE(NO CONDENSATION) |
Storage Temp: -20 - +75°C Working Temp: 0 - +50°C |
|
|
WEIGHT |
Approx 161g |
|
