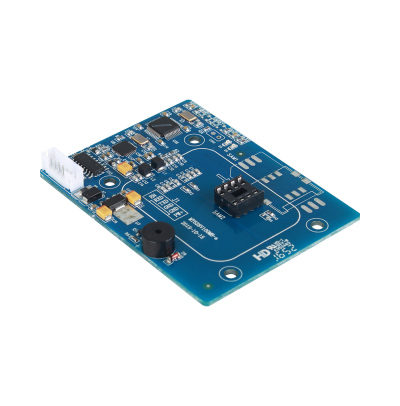

MINGTE’s MT628 series contactless card reader is a card reading module, which supports ISO14443 Type A & B contactless cards and ISO7816 smart cards. It has 1 SAM card slot (optional ESAM or PSAM). The antenna board can be made integrated with the mainboard or separated to it, which depends on customers’ requirements. It excels in various fields, including Vehicle Charging Points, Kiosk Terminals, Fuel Dispensers, CNG Dispensers, Parking Systems, Ticketing Machines, Vending Machines and ID Terminals etc.
●Support contactless IC card (ISO14443 TYPE A)
●Support S50 & S70 (Mifare)
●Support PSAM & ESAM card (ISO7816), optional PSAM and ESAM
●Supplied with 2 card slots (PSAM or ESAM)
●Customized for compatibility with application flow of charging points from China Southern Power Grid or State Grid
●Customized for charging or financial applications, easy and cost-effective for secondary development
●Communication interface compatible with China State Grid standard, various corresponding and custom design
●Software updated via RS232 supported
●Carefully-designed antenna size for most installation design
●Various installation dimensions design, temperature-proof
●Electric Vehicle Charging Points, Kiosk Terminals, Fuel Dispensers, CNG Dispensers, Parking Systems, Ticketing Machines, Vending Machines, ID Terminals
|
CARD TYPE |
SIM Cards, PSAM Cards, ESAM Cards |
|
|
CONTACTLESS CARD |
ISO14443 Type A & MIFARE |
R/W |
|
IC CARD |
SIM/PSAM/ESAM |
R/W |
|
EMV |
||
|
CARD READING DISTANCE |
4-8cm and 106Kbit (Related to Cards and Installation Environment) |
|
|
INTERFACE |
RS-232/TTL(uart) |
|
|
COMMUNICATION FREQUENCY |
9600/38400/57600/115200bps |
|
|
ANTENNA |
PCB Antenna |
|
|
FREQUENCY |
13.56MHz |
|
|
COMMUNICATION SPEED |
106Kbit(212Kbit & 424Kbit pps Commands Optional) |
|
|
SECONDYARY DEVELOPMENT |
VC, Linux |
|
|
OPERATING SYSTEM |
Windows 98, Me, 2K, XP, 2003, Vista and Linux |
|
|
DATA STORAGE CAPACITY |
Standard Capacity inside Reader: 4k bytes |
|
|
STATUS DISPLAY |
LED Indication Light for Power & Communication Status |
|
|
POWER SUPPLY |
DC5V ± 5% |
|
|
CURRENT |
Current: ≤25mA(5V) Current: ≤120mA(5V) |
|
|
WORKING TEMPERATURE |
-40-+65°C |
|
|
WEIGHT |
約15g | Approx 15g |
|
