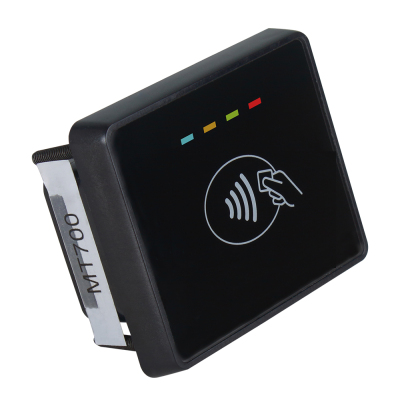

MT700 is a contactless card / tag reader which can accept ISO14443 Type A / B and Mifare cards. It is designed to meet the demands of any unattended card payment transaction in sectors such as buses, vending machines, kiosk terminals and fuel pumps. It comes with data encryption between Encryption PIN Pad, integrated communications (USB device, RS-232, SAM) and accepted power from 5V DC via USB or RS-232. Featuring with high stability & reliability, highly ruggedized & easy integration and exceptional user experience. Supporting major contactless programs like Mastercard® PayPass™, American Express® ExpressPay™ and Visa® Contactless Programs, this product configuration is also a proven solution for the most demanding contactless EMV programs. This solution is fully compliant with the latest Near Field Communications (NFC) standard, allowing to make transactions with cell phones and other consumer electronic devices.
● High Stability and Reliability
Flexible and secure platform
USB Device / RS-232 / SAM
PCI PTS 5.x certified， supports SRED
Cooling fan and heating pad connector
●High Ruggedized & Easy Integration
Plug-and-play
Standard USB connection
Cutout compatible to EVA standard
Anti-vandalism enclosure withstanding an impact up to IK10
Durable, metal front plate & weatherproof enclosure withstanding IP65
● Exceptional User Experience
Illuminating contactless logo
Optical guidance by four LEDs
System wake-up upon card tap
● Kiosk Terminals, Fuel Dispensers, CNG Dispensers, Parking Systems, Ticketing Machines, Vending Machines
|
PROCESSOR |
ARM A7, 500MHz |
|
|
MEMORY |
128MB Flash, 256MB SDRAM |
|
|
CARD TYPE |
Contactless Card |
|
|
|
|
|
|
CONTACTLESS CARD |
SO14443 TYPE A / B & MIFARE, 13.56MHz |
R/W |
|
EMV |
Level 1 & L2 Certified |
|
|
AUDIO |
Buzzer |
|
|
INTERFACE |
1 x USB Device︱1 x RS-232︱2 x SAM |
|
|
POWER SUPPLY |
5V DC via USB or RS-232 |
|
|
SECURITY |
PCI PTS 5.x Certified， Supports SRED |
|
|
ENVIRONMENTAL |
Operating Temperature: -30 ~ 70°C |
|
|
Relative humidity: 5% to 95% RH Non-condensing |
||
|
Storage Temperature: -30 ~ 70°C |
||
|
DIMENSIONS(mm)
|
W |
82 |
|
H |
68 |
|
|
D |
34 |
|
|
MECHANICS(CUTOUT) |
W |
72 |
|
H |
44 |
|
|
IP PROTECTION RATE |
IP65 |
|
|
SHOCK PROTECTION |
IK10 |
|
|
WEIGHT |
Approx 111g |
|
|
REMARKS |
Optical guidance by LEDs |
|
