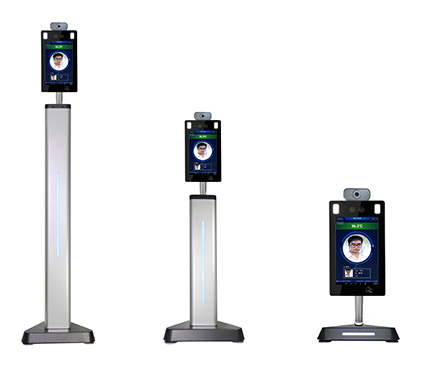

Pass management vertical module of temperature measurement and face recognition uses High-performance 32-bit 4-core ARM chip. High-performance hardware platform, equipped with industrial-grade binocular camera, live face recognition technology and infrared thermal imaging module to support face-with-mask identification.
Campus community, Industrial Park, Chaneel gate, Eantrance guard, School, Office, Airport, Hospital, Hotel, Community, Transportation, Supermarket, Public Area
|
Hardware & Technical Specifications |
|
|
Display |
8 inches |
|
Overall Size |
284(L)*140(W)*29(H)mm |
|
Processor |
High-performance 32-bit 4-core ARM chip |
|
Flash |
8GB |
|
Measurement mode |
Thermographic temperature measurement |
|
Measuring Distance |
0.3m-0.8m(recommended 0.5m) |
|
Communication Method |
TTL |
|
Temperature Measurement Accuracy |
±0.2℃~±0.5℃ |
|
TT Operating Temperature |
-20-65℃ for |
|
Storage Temperature |
-40-65℃ for |
|
Power Supply |
3-5V |
|
Electric Current |
2mA |
|
Baud Rate |
9600/115200 |
|
Default Automatic Output Frequency |
14Hz |
|
Wavelength Range |
8-14µm |
|
Temperature Output |
Real-time parallel output |
|
Temparature Correction |
Manual and automatic calibration |
|
Alarm Threshold |
Adjustable |
|
Wiegand Interface |
Support Wiegand 26 Wiegand 34 |
|
Other Interface |
232; TTL; WIFI; RJ45; USB |
|
Style |
Symmetrical design, can be hang horizontally and vertically |
|
Camera
|
200w: USB connector, monocular wide dynamic, anti-glare |
|
Ind Aperture 2.8, focal length 1.6mm, field angle 130°TV distortion<-5%, photosensitive area size 1/5-inch |
|
|
Pixel:According to customer requirements,≥ 2 million pixels |
|
|
Assembly angle: flat out |
|
|
Image Sensor |
6mm focal length, F2.4 aperture |
|
Fill Light |
LED:white light, RGB camera fill light, a control interface in SDK |
|
NTR:850m infrared LED light, IR camera fill light source, with control interface in SDK |
|
|
Operation System |
Android 5.1.1 or above |
|
Input Power |
DC12V 2A |
|
Backlight Recognition Iilluminance |
<6000Lux |
|
Effective Recognition Distance |
0.5-4m |
|
Working Environment |
Indoor and outdoor(with rainproof frame),10-90%(non-condensing) |
|
Operating Temperature |
-20℃~+ 65℃ |
|
Card Reading Speed |
0.2S |
|
Matching |
Matching |
|
ID Card Reader |
Support second-generation ID card recognition function, with control interface in SDK |
|
LTE Function |
Support 4G full Netcom Internet access function |
